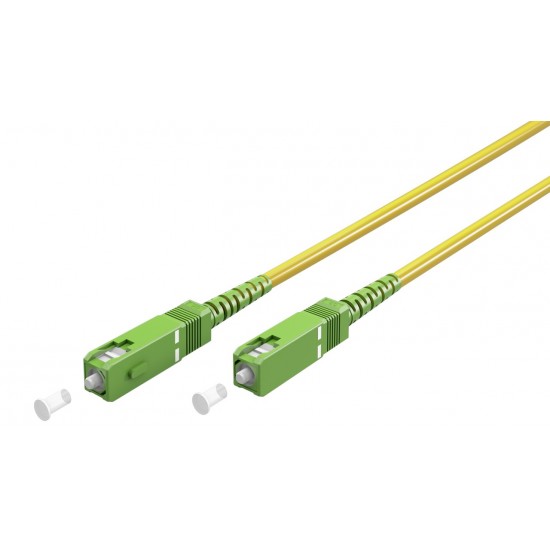

Goobay Fibre-optic Cable FTTH Singlemode OS2 Yellow 20 m

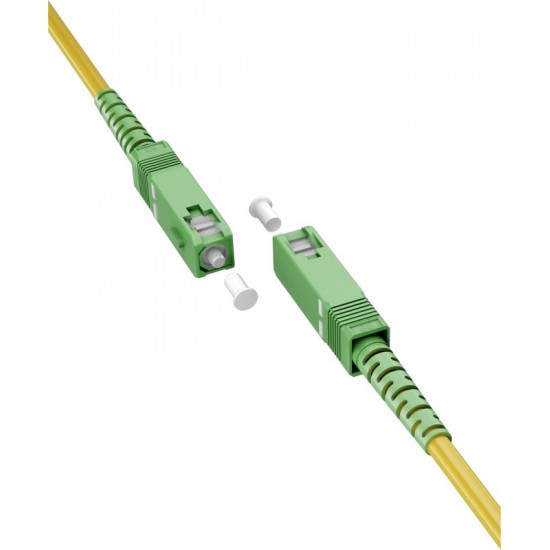

Οptical fibre (FOC), SC-APC (8°) male > SC-APC (8°) male, halogen-free cable sheath (LSZH)The patch cable is suitable for private and industrial applications, including fibre to the home (FTTH), and is compatible with the FTTH options of a wide range of telecom providers. Thanks to an optimised bend radius of the fibre optic cable, space-saving installation is possible without increasing attenuation and risking interference. mono-mode fibre optic cable designed for connection types such as FTTH, FTTB, FTTx, for use at home, in the office, in data centres etc. the patch cord forms the connection between the house transfer point and the Optical Network Terminal (ONT) indoors optical fibre cable for up to 100 Gbit/s that is bend-optimised and space-saving with a minimum bending radius of 30 mm (static) LSZH-compliant: cable sheath is halogen-free and flame-retardant according to IEC 60754 2, IEC 60332 1 and IEC 61034 strain relief reinforced with aramid yarn provides extra stability equipped with dust protection caps, connector: Simplex, fibre type: OS2, SM singlemode 9/125µm according to ITU-T G.657.A2 individual test protocol with measurement of return loss and insertion loss Technical specificationsConnectionsKink protection yesConnection 2, type SC-APC (8°) maleConnection, type SC-APC (8°) maleCableOptical fiber core diameter 9 µOptical fiber sheath diameter 125 µWavelength 1310 nmCable fiber type Glass Fibre G.657.A2Specification Singlemode (OS2) YellowCable sheath diameter (approx.) 3 mmCable type simplex cableCable length 20 mbending radius > 30 mmLSZH compliant yesGeneralColor yellowOperating temperature from -40 °COperating temperature up to 85 °CPackaging type BulkDimensions / WeightConsumption Unit 1 pc. in polybag
